Nylon Screen Printing Mesh

10mesh to 500mesh nylon screen printing mesh

Item No.: 00105

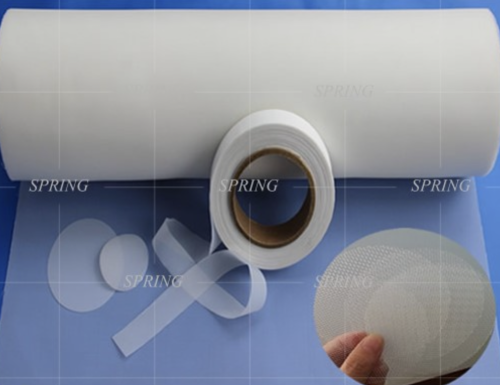

10mesh to 500mesh nylon screen printing mesh
Description
Description

10mesh to 500mesh nylon screen printing mesh

Introduction:
Nylon screen printing mesh also named bolting cloth, silk screen printing mesh, nylon screens, Polyamide mesh, etc. Shanghai SPRING nylon silk screen printing mesh is made from 100% nylon monofilament yarn, it also be called monofilament mesh fabric. SPRING have nylon mesh from 10mesh to 500mesh, it is widely used for textiles, ceramics, glasses, plastic, shoes, electronics silk screen printing or liquid or solid filteration. SPRING can provide you the first-class nylon mesh to improve the printing result from your competitors. Special items can be customized.


Specification:

Type Weave Mesh/CM Mesh/inch Wire Dia.
(um)
Mesh Opening(um) Open Area
(%)
Thickness
(um)
PA-4/1950 PW 4 10 550 1950 61 1096
PA-5/1500 PW 5 13 500 1500 56 998
PA-6/1267 PW 6 15 400 1267 58 796
PA-7/1079 PW 7 18 350 1079 57 691
PA-8/900 PW 8 20 350 900 52 697
PA-9/861 PW 9 24 250 861 60 492
PA-10/750 PW 10 25 250 750 56 494
PA-12/533 PW 12 30 300 533 41 590
PA-14/514 PW 14 35 200 514 52 391
PA-16/425 PW 16 40 200 425 46 393
PA-18/356 PW 18 45 200 356 41 395
PA-20/300 PW 20 50 200 300 36 396
PA-24/267 PW 24 60 150 267 41 292
PA-28/207 PW 28 70 150 207 34 295
PA-30/213 PW 30 76 120 213 41 230
PA-32/213 PW 32 80 100 213 46 186
PA-36/178 PW 36 90 100 178 41 189
PA-40/150 PW 40 100 100 150 36 192
PA-44/127 PW 44 110 100 127 31 195
PA-48/128 PW 48 120 80 128 38 150
PA-56/119 PW 56 142 60 119 44 96
PA-59/109 PW 59 150 60 109 42 110
PA-64/96 PW 64 163 60 96 38 116
PA-72/89 PW 72 183 50 89 41 90
PA-80/75 PW 80 203 50 75 36 93
PA-88/71 PW 88 224 43 71 39 70
PA-96/61 PW 96 244 43 61 34 74
PA-100/57 PW 100 254 43 57 32 75
PA-104/53 PW 104 264 43 53 31 76
PA-110/48 PW 110 280 43 48 28 78
PA-120/40 PW 120 305 43 40 23 80
PA-130/34 PW 130 330 43 34 19 83
PA-140/33 PW 140 355 38 33 22 73
PA-150/28 TW 150 380 39 28 17 75
PA-157/25 TW 157 400 39 25 15 76
PA-165/30 TW 165 420 30 30 25 54
PA-200/21 TW 200 500 30 21 17 56
PA-240/3 TW 240 600 39 3 0.5 68

Our Offer & Your Benefit:

  • Full size mesh items can save your time and energy to search more suppliers.
  • Factory offer with reasonable price and high quality mesh
  • ISO9001 quality management system
  • Fast delivery time
  • Excellent service

Specification:


Type Specification (mesh/cm) Mesh/Inch Wire Dia.
(um)
Mesh Opening
(um)
Opening Area(%) Thickness
(um)
JPP4/450 4 11 450 1823 60 900
JPP6/400 6 15 400 1267 58 840
JPP7/350 7 18 350 1079 57 640
JPP8/350 8 20 350 900 52 645
JPP9/250 9 24 250 861 60 460
JPP10/250 10 25 250 750 56 530
JPP12/300 12 30 300 533 41 495
JPP14/200 14 35 200 514 52 380
JPP16/200 16 40 200 425 46 400
JPP16/250 16 40 250 375 36 420
JPP17/200 17 42 200 388 44 380
JPP18/220 18 45 220 366 37 400
JPP20/200 20 50 200 300 36 375
JPP24/150 24 60 150 267 41 305
JPP28/150 28 70 150 207 34 278
JPP30/120 30 76 120 213 41 230
JPP32/100 32 80 100 213 46 240
JPP36/100 36 90 100 178 41 195
JPP40/100 40 100 100 150 36 192
JPP44/100 44 110 100 127 31 175
JPP48/80 48 120 80 128 38 150
JPP56/60 56 142 60 120 44 110
JPP59/60 59 150 60 110 42 98
JPP64/60 64 163 60 96 38 120
JPP72/50 72 183 50 89 41 90
JPP80/50 80 203 50 75 36 93
JPP100/43 100 254 43 60 36 78
JPP120/43 120 305 43 40 27 80
JPP130/43 130 330 43 34 19.5 83
JPP140/38 140 355 38 33 19 70

Features:

  • More than 30 years experiences since 1983
  • More Durable than polyester mesh
  • Alkali-resistance
  • High tension
  • 100% nylon monofilament yarns
  • Even mesh opening
  • Food grade – FDA approval
  • High temperature can be used under 200℃
  • Imported weaving machine
  • Imported yarn or high quality china yarn
  • Width: 3cm-370cm available
  • Color: White or yellow or black
  • Mesh count: 4T(10mesh) – 240T(600mesh)
  • Roll Length: 30-100M
