Polyester Screen Printing Mesh

20mesh to 420mesh Polyester for Ceramics

Item No.: 00100
20mesh to 420mesh Polyester Screen Printing Mesh for Ceramics
Description
Description

20mesh to 420mesh Polyester Screen Printing Mesh for Ceramics

Introduction:

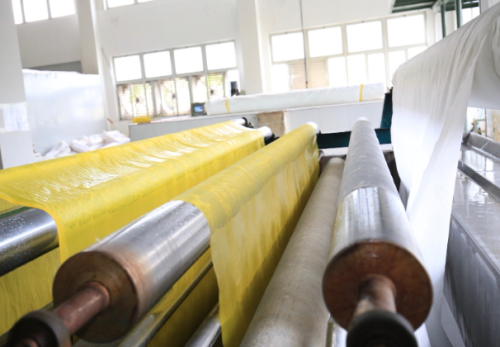

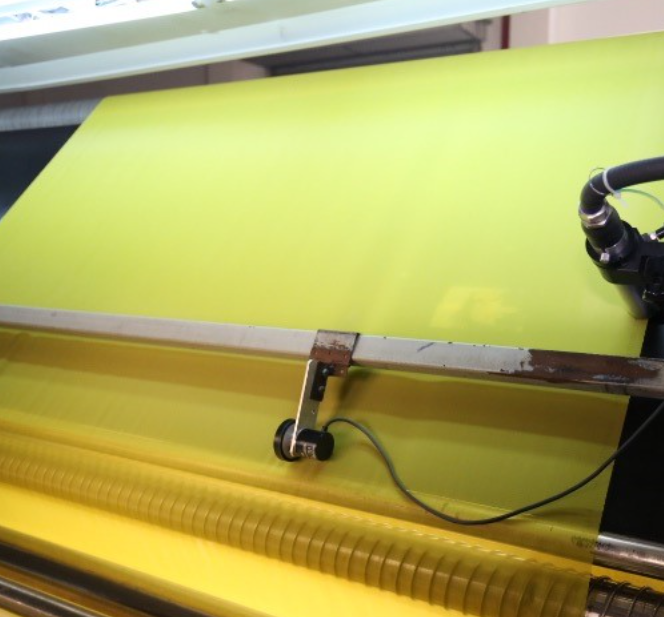

It seems nothing is impossible with screen printing! Shanghai SPRING screen printing mesh can provide you the best printing result, with fine details, vivid colors and remarkable finishes, etc to satisfy your customers’ demand. Shanghai SPRING polyester graphic screen printing mesh is produced by Japan yarn or Jintong yarn (the best yarn in China), with Bennginer warping machine imported from Germany and Sulzer Ruti weaving machines imported from Swiss, together with the reed and heat setting machine which are imported from Germany, to make sure the mesh have good surface and high tension. SPRING screen printing mesh is exported to more than 50 countries now. Such as Korea, Italy, America, Germany, British, Poland, Singapore, Japan, UAE, Saudi Arabia, Mexico, Pakistan, Bangladesh, etc.


The following is the characteristics for the screen printing mesh used on ceramics:


  • Process is simple, easy to operate
  • Less processes, high efficiency, conducive to the realization of mechanized production. Self - arranged production according to the market, greatly reducing the time to order the decorative materials, shortening the production time and the product can be changed more easily
  • Different quantity can be printing according to the order
  • Cold-ink or hot-printing porcelain ink both ok
  • With complete pattern, no interface, three-dimensional, simple, beautiful and so on characteristics it is very good for large-scale decorative murals screen printing


Application:



Label printing – Screen printing for label is one of the simple way to print for codes, to make sure the printing quality, improving the printing technology and silks is necessary. Usually use 22.5°stretching method, to reduce the wire blocking on the ink. 300mesh is good choice for label screen printing. Emulsions need to be coated little thicker at least 8μm. Screen printing labels is very popular in the cosmetic, health & beauty, food & wine and pharmaceutical industries because of its ability to create special effects, and make products more attractive.


Other applications: decals screen printing, tubes & cartridges printing, small or large format UV graphics printing, etc.


Specification:

Type Mesh/CM Mesh/inch Wire Dia.(um) Mesh Opening(um) Open Area (%) Thickness (um)
DPP24/100 24 60 100 317 58 190
DPP24/120 24 60 120 297 51 240
DPP29/120 29 76 120 213 41 240
DPP32/100 32 80 100 213 46 200
DPP34/100 34 86 100 194 44 221
DPP36/80 36 90 80 198 51 156
DPP36/100 36 90 100 178 41 216
DPP40/80 40 100 80 170 46 150
DPP43/80 43 110 80 153 43 130
DPP47/71 47 120 71 142 44 135
DPP53/64 53 135 64 125 44 120
DPP59/64 59 150 64 105 39 120
DPP62/64 62 155 64 100 37 115
DPP64/64 64 163 64 92 35 120
DPP68/64 68 173 64 83 32 130
DPP72/55 72 183 55 84 37 100
DPP77/55 77 195 55 75 33 105
DPP90/48 90 230 48 66 35 85
DPP100/40 100 250 40 61 37 70
DPP110/40 110 280 40 52 33 85
DPP120/34 120 300 34 48 32 55
DPP120/40 120 300 40 42 26 68
DPP140/34 140 350 34 37 24 58
DPP150/31 150 380 31 34 26 46
DPP165/31 165 420 31 30 24 60


Features & advantages:


  • High Tension – Japan or Jintong yarn, SULZER RUTI weaving machine & Germany heat setting machine.
  • Low Elongation: technicians with more than 20 years experiences.
  • Quality Control: 3-4 times inspection before goods ship out.
  • Fast Delivery: within a week for big orders, 2-3days for small orders.
  • Strong tear resistance
  • Cheap price: factory offer.
  • Ideal ink through capability
  • Excellent service: any problem or questions will be solved within 12hours
  • Good reputation: 90% repeat customers

Our Service:

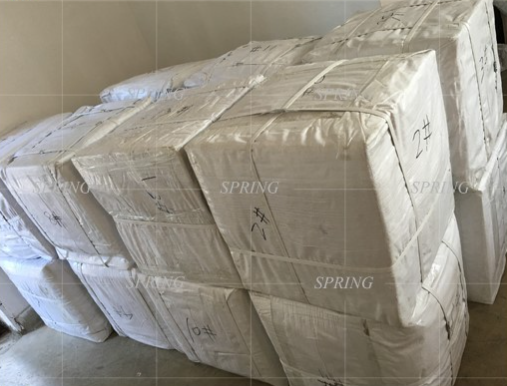

  • 50M more or less per roll under your request in plastic bag
  • 2-10rolls per carton under the specification
  • Waterproof woven bags outside the carton
  • If big quantity, our sales will confirm it with our production department once the order confirmed
  • The goods will be ship out at the first time after it is ready
  • Packing belt to make sure the carton not broken
  • Will confirm with you after you get it
