Rotary Nickel Screen

25mesh to 195mesh

Item No.: 00093
Description
Description

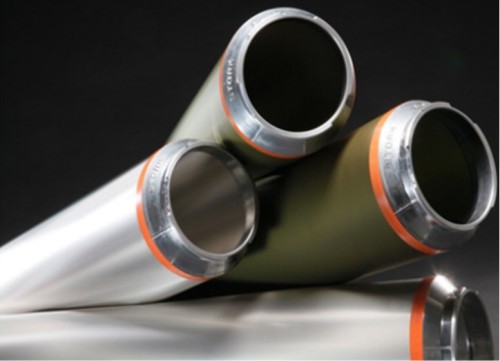

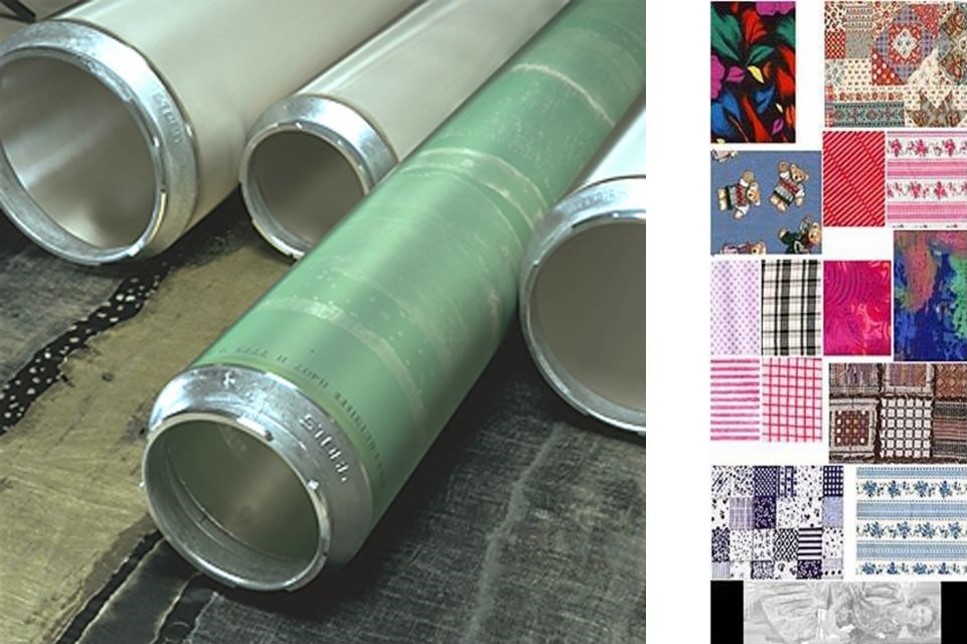

Rotary Nickel Screen 25mesh to 195mesh

Rotary screen printing belongs to continuous processing, and high production efficiency, both roller printing’s advantages and flat screen printing’s advantages, but there are certain limitations in the fine pattern and printing color richness. It is limit on the color choice for rotary screen printing, also known as pigment printing. As the pigment is a non-water-soluble coloring material, the fiber non-affinity, the coloring according to the coating of the molecular compound adhesive and the adhesion to the fiber.

Pigment printing can be used for the processing of any fiber textile, in the blended, interwoven fabric printing has more advantages, and the process is simple, chromatography broader, flower-shaped profile clear, but the touch feel not good, the friction fastness is low. Shanghai SPRING cooperate factory focus on Rotary Nickel screen mesh production from 1994, with more than 20 years experience, the nickel screen with various specifications and good tenacity, can be repeat used for several times, suitable for any kind of dyestuff with even infiltration, it can be used for any pattern printing, especially at super fine patterns.

Specification details:

Mesh Thickeness(um) Open Area(%) Hole Diameter(um)
25 160-165 30-32 720
40 145-150 28-30 318
60 115-120 18-20 161
70 110-115 16-18 131
80 110-115 16-18 105
100 105-110 15-17 74
105 105-110 15-17 94
125 100-105 14-16 79
125V 100-105 14-16 79
135 100-105 13-15 92
135V 100-105 13-15 92
155 100-105 12-13 60
165 100-105 12-13 71
195 100-105 15-16 52


NOTE:
All screens with "V" the hole order is angle 45. Especially used in printing pane and line, geometrical figure, etc.
All kinds of screens can be used for 5~7 times repeatedly.
Special size can be customized.

Features & advantages:


Brittleness:
- use of the sulfur-free additive in the screen-making process enables the non-existence of brittleness of screens during/after the rounding and polymerization process.  Brittleness is the main cause of screen crack and damage on the rotary printing machine in operation. A convenient way to test the brittleness is the so-called "lighter rest": a piece of screen sample burnt by a lighter flame for 10 seconds, bend the screen sample to see if it breaks at the burnt spot. Can endure 6-7 times stripping by water jet or LEN.
Dyestuff:
- Dyestuff saving by High mesh screens: due to the high density of holes, unique involuted hole shape, and minimized nickel dam, the coverage of dyestuff paste on the fabrics has largely increased compared with conventional Penta screens. For the same amount/intensity of dyestuff deposit on the surface of fabric, less squeegee/ magnetic roller pressure is required; as a result, substantial saving on dyestuff paste is achieved. Experiments have proved that up to 19% of paste volume can be saved at multiple printing mills around the world.
  • Higher open area allows smooth throughout of dyestuff paste so that printing speed and efficiency of printing machine can be ascended
  • 165 and 195 mesh screens can help achieve better gradation of halftones, as well as finer line width and reproduction of fine details of fabric design. Whilst 135 screen with extraordinary high open area(>25% if needed) can satisfy the high paste deposit requirement for solid printing on knitted fabrics.
  • Narrow tolerance of open area(+/-0.5%) and thickness(+/-3 microns) safeguard high consistency of screens, which minimizes the color difference among right, middle and left side of printing width. In addition, it's worry free to pick screens from difference batches due to high level of quality control on consistency.
  • Without use of saccharin as additive, a screen exhibits good property of resilience, softness of screen is eliminated, and therefore creases are depressed during the prepress and printing processes, which provide convenience/efficiency for the operators during the handling and use of screens.
  • Automatic screen cutter ensures uniform cutting edge and accuracy, which contribute to higher registration among printing stations for fine design printing.
  • The combination of extra thickness and open area meets the requirement of niche customer requirement such as wax and wall paper printing, an excellent substitute of expensive European SP/ CP screens.
  • Provides with application support on prepress and printing processes.
Packages:
--- Rolled

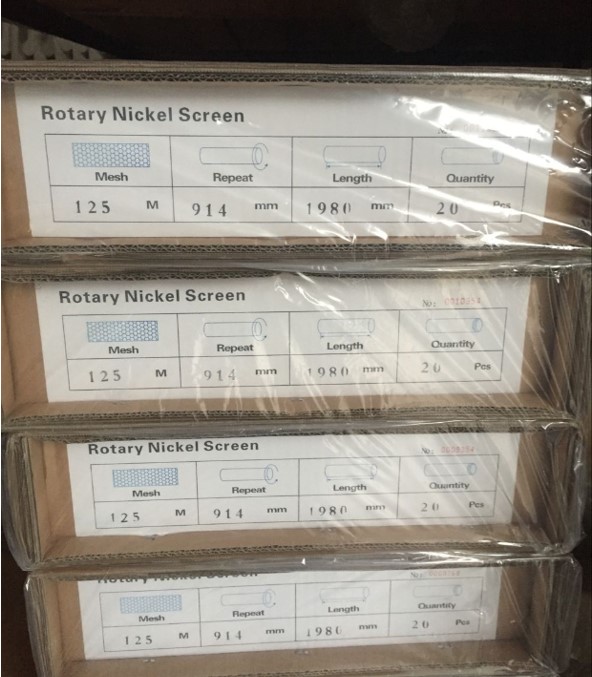

--- Carton box with specifications details
--- Wooden box
--- Special demand can be produced under request
