Factory offer Screen Printing Squeegees

Introduction: Squeegees are an essential tool for screen printing, probably the most important piece of equipment besides the actual screen! Shanghai SRING cooperated factory is established in 1988, with nearly 20 years experience, our factory imported the advance equipment, raw material from Europe and United states. With more than 300 skilled workers, the squeegees are well established in the world market.

Description of silk screen squeegees:

I Series (W) Water-based PU squeegee: it is widely used for textile printing and package advertisement printing.

II Series (S) This series squeegee is popular in textile, decoration cloth printing. Resistance to solvent-based: it is solvent and middle type pressure resistance. Use for low viscosity ink printing. Also use for normal hand type or machine type printing, such as ceramics, decal paper, glass, leather and packing materials printing

III Series (V) This series squeegee is abrasion and solvent resistance. Use for strong solvent ink, high quality pattern printing, high pressure printing, high density mesh printing and mobile phone printing.

IV Series (AA) This series squeegee is abrasion and solvent resistance. It is popular in packing materials, advertisement, plastic, PCB, glass products, leather and metal products printing. It could be reshaped for many times. As this series squeegee can used for many types of material printing, so it is very popular. It is Europe first generation product, and we also call it economic type squeegee.

V Series (UV) This series squeegee is made from imported raw materials. It is environmental protection, antistatic, deformation resistance, high pre-straining and high pressure resistance. Use for UV ink, CD, LTD, PCB, glass and solar panel printing. It is suitable for all kinds of mesh and ink printing.

VI Series (AA+) This series squeegee is made from imported England high quality raw materials and technology. It is very good for solvent ink printing. It is Europe third generation product. It is abrasion resistance, UV resistance, environmental protection and antistatic. Use life is 30% longer than Europe second generation products. The quality of this type squeegee is the highest. Our customers always purchase large quantity of this type squeegee. This series mainly used for electronics, Printed circuit Board, packing, glass, UV printing CD, ceramics, etc.

Specification:

Hardness scope & Color :

Grade	Shore	Color	Common Color Sample
PU1	45-50	Transparent
PU2	50-55	Light Yellow
PU3	55-60	Light Red
PU4	60-65	Red
PU5	65-70	Light Green
PU6	70-75	Green
PU7	75-80	Blue
PU8	80-85	Coffee
PU9	85-90	Light Brown
PU10	90-95	Pink

Hardness Selections :

Red, Soft PU1-PU4	Suitable for low viscosity ink printing, low density or tough surface printing.
Green, Medium PU5-PU6	High pressure resistance. Suitable for high or low viscosity ink or high density surface printing. Could easily control the ink amount and assure the precision of the printing.
Blue, Hard PU7-PU10	Highest pressure and strongest ink solvent resistance. Could easily control the ink amount and get the highest quality printing.

Size Selections :

Length	Width	Thickness
2450mm100”	9.5mm-320mm	1mm-30mm
3200mm126”
3660mm144”
4000mm157”

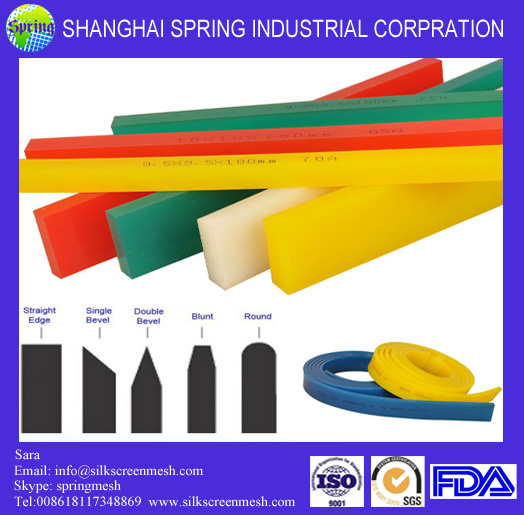

Edge Selection:
