Flour Mesh

Food Grade FDA approved nylon flour mesh--GG series

Item No.: 00112
Food Grade FDA approved nylon flour mesh--GG series
Description
Description

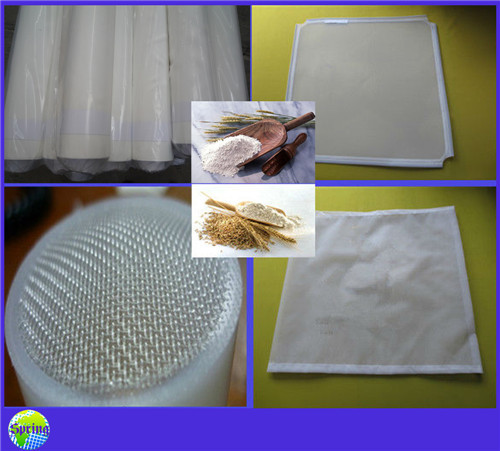

Food Grade FDA approved nylon flour mesh--GG series

Introduction:
Shanghai SPRING nylon flour mesh is woven by 100% monofilament nylon yarn with PA6 or PA66, which can meet FDA standard, it is very safe to use SPRING nylon flour mesh to sifter the wheat or rice or corn, etc. With good strength, anti-static and high flour extraction rate, SPRING nylon flour mesh is very popular to the milling factories from US, Europe, Southeast areas and South America areas. Shanghai SPRING nylon flour mesh has GG series, XXX series, MF Series.

Application:

The nylon milling mesh is mainly used for corn flour, rice flour, wheat flour, bean flour etc other grains sifter.


Our Offer & Your Benefit:


  • 100% nylon monofilament material PA6 or PA66
  • Even mesh opening
  • ISO9001, SGS
  • FDA approval
  • Width: 100CM-190CM, different width can be customized, the maximum width can reach 370CM
  • 10GG-74GG
  • Low price with high quality
  • Fast delivery
  • Excellent after-sale service
  • Samples can be provided before order
  • Trial order or small order is available

Specification:


Spec. Mesh/inch Mesh/cm Wire Dia. (um) Mesh Opening (um) Opening Area (%)
PA-10GG 10 3.9 550 2000 61.5
PA-12GG 11.3 4.4 450 1800 64
PA-14GG 12.7 5 400 1600 64
PA-15GG 14.1 5.6 400 1400 60.5
PA-16GG 15.4 6.1 350 1300 62.1
PA-18GG 16.5 6.5 350 1188 59.7
PA-19GG 17.8 7 350 1080 57
PA-20GG 19.5 7.7 300 1000 59.2

PA-22GG
20.3 8 300 950 57.8
PA-24GG 22.1 8.7 300 850 54.6
PA-26GG 23.1 9.1 300 800 52.9
PA-27GG 25.4 10 250 750 56.3
PA-28GG 26.5 10.4 250 710 54.7
PA-30GG 27.6 10.9 250 670 53
PA-31GG 29.5 11.6 250 610 50.3
PA-32GG 29.9 11.8 250 600 49.8
PA-34GG 32.6 12.8 220 560 51.5
PA-36GG 33.9 13.3 220 530 49.9
PA-38GG 35.3 13.9 220 500 48.2
PA-40GG 37.6 14.8 200 475 49.5
PA-42GG 39.1 15.4 200 450 47.9
PA-44GG 40.6 16 200 425 46.2
PA-45GG 43.8 17.2 180 400 47.6
PA-47GG 45.8 18 180 375 45.7
PA-50GG 50.3 19.8 150 355 49.4
PA-52GG 52.4 20.6 150 335 47.7
PA-54GG 54.6 21.5 150 315 45.9
PA-56GG 55.5 21.8 150 308 45.2
PA-58GG 56.4 22.2 150 300 44.4
PA-60GG 59.1 23.3 150 280 42.4
PA-62GG 59.8 23.5 150 275 41.9
PA-64GG 61.2 24.1 150 265 40.8
PA-66GG 68.6 27 120 250 45.7
PA-68GG 70 27.5 120 243 44.8
PA-70GG 71.3 28.1 120 236 43.9
PA-72GG 73.8 29.1 120 224 42.4
PA-74GG 76.5 30.1 120 212 40.8
REMARK: 1) All the above data is theorotical, for your reference only. 2) Special size can be customized.
