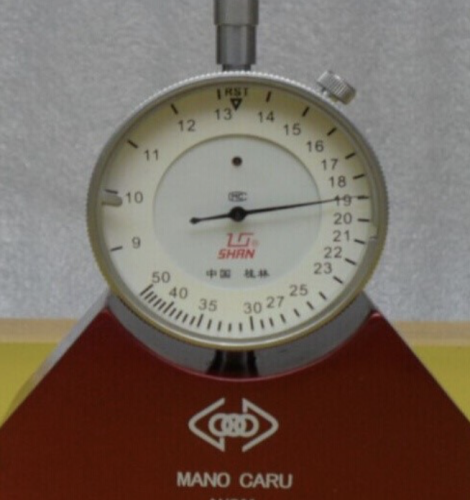

High quality cheap price screen printing mesh Tension meter
Shanghai SPRING tension meter applies to measure mesh tension of N/cm, very dependable and accuracy. It has correction zero, it's not allowed to disassemble or re-fix it.
plastic bag and carton, good package packing size:230mm*140mm*170mm Gross weight(add package): 1.2KG

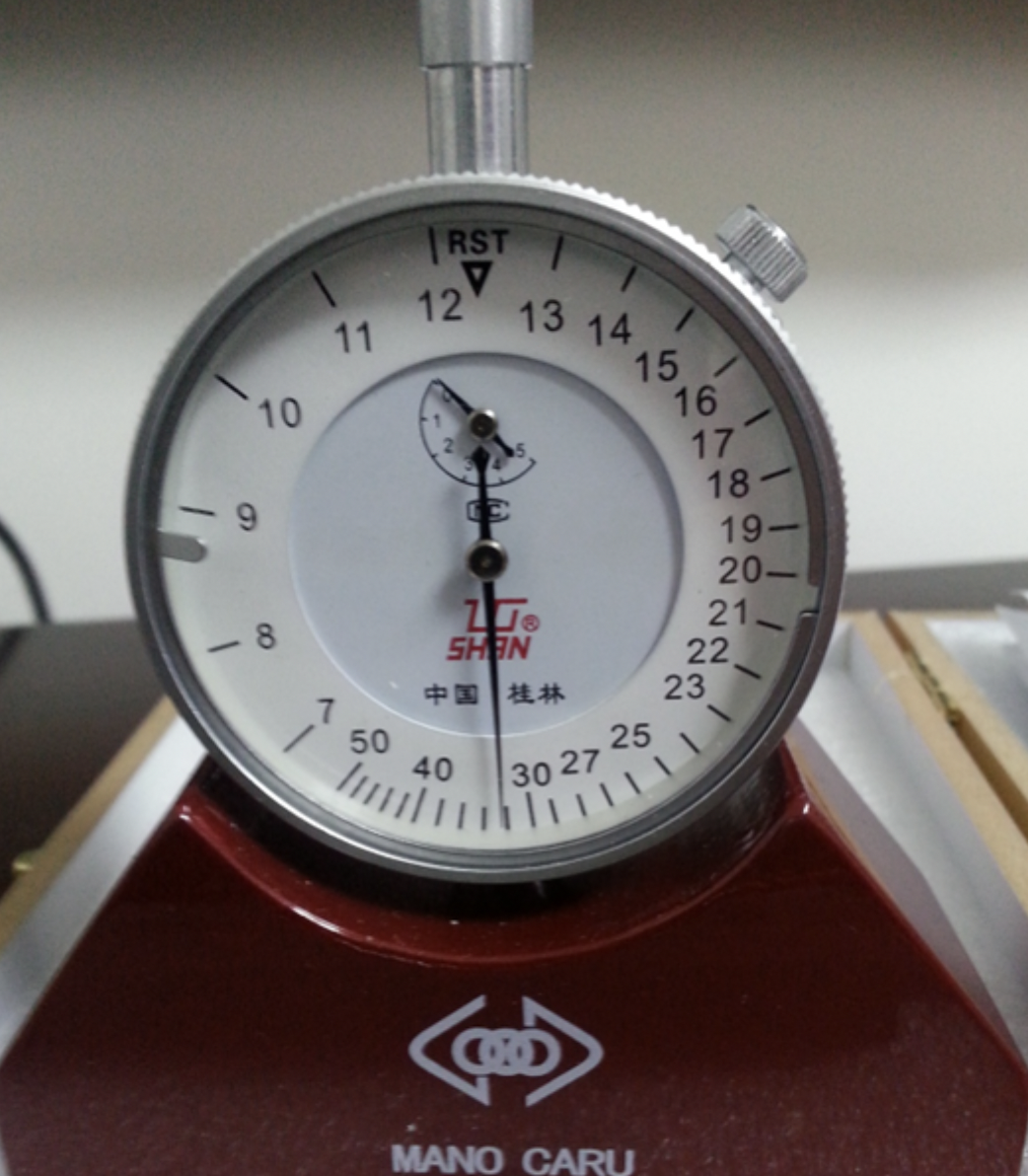

Screen Printing Tension Meter
1.Good quality very easy to use and accurate checking the tension of the mesh is the best tool for checking tension when stretching 2.It is used for testing the mesh tension of N/cm, very dependable and affordable accuracy tool, no adjustment necessary.
3. Item also includes a good packing box Good for screen printing stretching mesh and apply proper tension to make good quality long lasting frames.
4. Good quality with good price, each screen printer should have one!
1. Before using please put the tension meter on the glass and turn round the dial to make the pointer return to zero. 2. Flick the silk screen during measuring, the indication when the pointer stopped is the tension of the silk screen. 3. Tension meter is precision meter, fall and touch is forbidden, be careful during using. 4. Tension meter is corrected precisely,dismounting alone is not allowed. 5. Can’t touch the bottom side contactor by hand, put the machine vertically without using. 6. The Newton indication is the indication of the tension’s contactor, the error is ±0.5N. 7. The indication of the second circle is the measured value during measuring
Tension Meter Operating Instruction
The tension meter factory has zero correction, users don't adjust it by yourself. Readout Method: the second lap of the tension meter reading pointer rotation unmber is accurate,(with flick the mesh by the tension meter) Remark: Measure tension of all screen printing fabrics in N/cm, means newtons per centimeter.
|Print type and mesh tension|
|Mesh type||Print type||Tension(N/cm)|
|Extra High Tension Mesh||PCB & Measurement Scale||16-20|
|High Strength Mesh||Four color and multicolor printing (machine print)||16-20|
|High Precision Ultra-Fine Mesh||High-precision multi-layer circuit board||25-30|
|High Precision Polyester Mesh (Standard monofilament)||Four color and multicolor printing (manual print)||8-12|
|Ordinary Polyester Mesh
|Nylon Mesh||Roughness surface object||8-12|
Commonly Used Mesh Maximum Tension Capability
The following data is tested with the Swiss middle or thick mesh, it is also related with the quality of stretching machine, good quality machine the mesh can reach the maximum tension without break. Please take the data as your reference when you stretching, if over the maximum tension, the mesh will be broken very easily.
|Mesn count||Max tension capability||Air pressure Adjustment|
