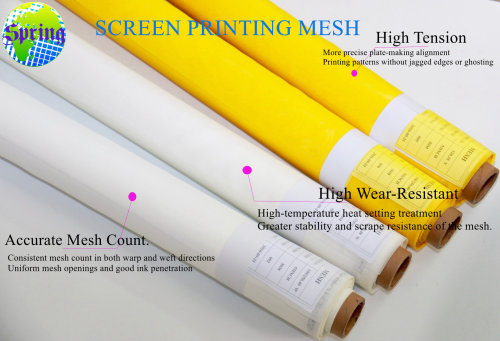

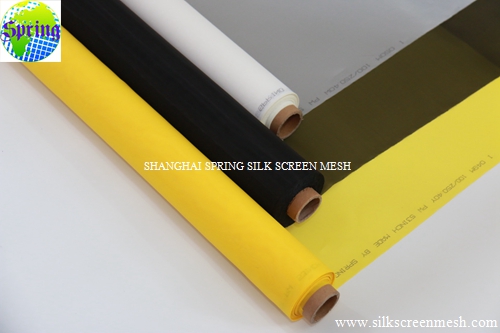

Nylon Printing Mesh
Plain weave 100% monofilament nylon bolting cloth screen printing mesh
Nylon screen mesh also called Polyamide mesh, is woven mesh made from 100% nylon monofilament yarn, washing and heat setting process after weaving. The plain weave mesh we can produced from 10mesh (4T) to 350mesh (140T), for twill weave can reach 600mesh (240T). For screen printing usage, usually use plain weave mesh as the mesh opening is more even than twill weave, but twill weave also can be used such as shoes’ screen printing, etc. according to the screen printing requirement.
The following points should be noted for nylon mesh usage:
- Because the nylon mesh is more elongation than polyester, therefore it needs increase the stretching tension to make sure no problem happened during screen printing.
- Non acid resistance, therefore be careful about the acid, formic acid and other erosion.
- Avoid light for the nylon mesh stock as UV light has little impact on the mesh.
How to choose screen printing mesh?
- According to the types of the substrates. Such as fiber fabric, paper products, glass, ceramics, metal, plastic, wooden, electronics, etc.
- According to the ink natures to choose the screen printing mesh, different ink have different characteristics. So we have to consider the ink drying time and color sharpness, the substrates absorb ink ability, etc.
- Different screen printing mesh material has different performance, according to different adaptability to select the appropriate screen.
The issues we should to notice when we select the screen printing mesh:
- If the substrate surface is rough, usually choose low count nylon screen printing mesh
- If the patterns with fine lines, usually high count screen mesh is needed
- Screen printing mesh also need to consider the cost, under meet the screen printing requirements, lower prices screen printing mesh is more good choice. SPRING PA and SPRING SDW are good choice. As under same quality, these meshes have cheaper price.
Our Offer & Your Benefit:
- 10mesh to 600mesh can be provided under your request
- 350mesh above is twill weave
- Width from 30cm to 330cm can be provided Different colors can be produce under your order
- Fast delivery time
- Excellent service
- Quality assurance
|Type||Specification (mesh/cm)||Mesh/Inch||Wire Dia.
- Smooth surface
- Good ink permeability
- Large viscosity and particle size ink can be used, to make sure the fine patterns printing
- Good elasticity, suitable softness, good adaptability to the substrate, good use for convex and curved surface product’s screen printing
- Good tension strength
- Wear resistance
- Long service life
- Renewable usage
